Introduction
In the demanding world of high-pressure piping systems, the reliability of every component plays a critical role in ensuring safety, performance, and longevity. Among these vital components, forged fittings stand out for their superior mechanical strength, compact structure, and ability to withstand extreme conditions. Whether used in oil & gas refineries, petrochemical plants, or power generation units, forged fittings have become a staple in industries where performance and pressure integrity are non-negotiable.
This comprehensive article explores what forged fittings are, how they are manufactured, why they are essential for high-pressure applications, and how they compare to other types of fittings in the market.
What Are Forged Fittings?
Forged fittings are pipe components manufactured through a forging process, where high-grade metal is heated and shaped under intense pressure. This method alters the grain structure of the material, improving its strength and resistance to fatigue, corrosion, and mechanical stress.

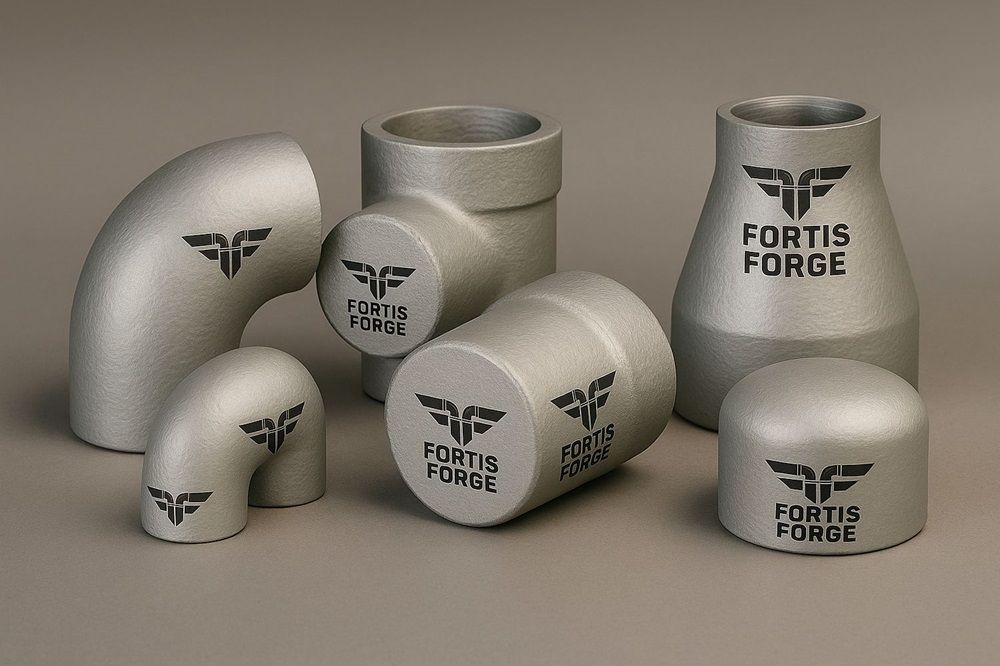

They are typically made from carbon steel, stainless steel, or alloy steel, and are available in various types such as:
- Elbows (90° and 45°)
- Tees
- Couplings
- Reducers
- Unions
- Caps and plugs
Forged fittings are used to change the direction of flow, connect different pipe sizes, or seal piping ends. They come in pressure classes like 2000#, 3000#, and 6000#, suitable for different industrial pressure requirements.
Manufacturing Process & Quality Assurance
- Forging: Raw metal billets are heated and compressed in dies to form the basic shape.
- Heat Treatment: Components undergo processes like normalizing and tempering to enhance mechanical properties.
- Machining: CNC machines are used to achieve precise dimensions and surface finishes.
- Threading/End Finishing: Depending on the requirement, fittings are either threaded or socket-welded.
- Inspection: Each fitting is tested through hydrostatic, radiographic, or ultrasonic testing methods.
- Compliance: Products adhere to international standards like ASME B16.11 and MSS SP-83.
This rigorous manufacturing process ensures consistent quality, pressure tolerance, and long service life.
Why Forged Fittings Are Ideal for High-Pressure Systems
- Unmatched Strength: The forging process refines grain flow, eliminating internal voids and weaknesses. This makes forged fittings stronger than cast or welded alternatives.
- Leak-Proof Design: Forged fittings are typically one-piece components, which means fewer joints and fewer opportunities for leaks, a crucial factor in high-pressure environments.
- Resistance to Extreme Conditions: These fittings can handle high temperatures and corrosive environments, making them perfect for chemical, petrochemical, and marine applications.
- Durability & Longevity: Their robustness ensures fewer replacements and less downtime, reducing maintenance costs over time.
- Compact Form Factor: Forged fittings are generally smaller in size than their buttweld counterparts, ideal for tight spaces and high-density piping systems.
Key Industry Applications
- Oil & Gas: Used in high-pressure pipelines, wellheads, and refineries.
- Petrochemicals: Essential for transferring aggressive fluids at high temperatures.
- Power Generation: Applied in steam and water circuits of thermal and nuclear plants.
- Marine & Offshore: Resistant to saltwater corrosion and high mechanical stress.
- Water Treatment: Ensure safe and leak-free transport of treated and raw water.
Forged vs. Cast vs. Buttweld Fittings
| Feature | Forged Fittings | Cast Fittings | Buttweld Fittings |
|---|---|---|---|
| Strength | Very High | Moderate | High |
| Pressure Rating | Up to 6000 psi | Up to 3000 psi | Up to 3000+ psi |
| Applications | Compact, high-stress | Low-stress systems | Large diameter systems |
| Durability | Excellent | Moderate | Excellent |
| Manufacturing | Forging + Machining | Casting + Finishing | Seamless/Welded pipework |
Selection Tips for Forged Fittings
- Always verify material grades (e.g., ASTM A105 for carbon steel).
- Ensure pressure ratings match system requirements.
- Choose socket weld or threaded ends based on ease of installation and seal integrity.
- Confirm compliance with international standards (ASME, ANSI, MSS).
Case Study: Use of Forged Fittings in a Refinery Project
A leading oil refinery in the Middle East integrated forged carbon steel fittings in their high-pressure steam pipelines. The fittings delivered superior performance with zero leak incidents over a 2-year operation window, reducing maintenance by 35% and improving uptime across the facility. This highlights how forged fittings not only improve safety but also drive long-term cost savings.
Future Trends
- Growth in demand for high-pressure systems (15,000 psi and above).
- Introduction of duplex and superalloy forged fittings for critical environments.
- Digitized inspection processes using IoT and AI in forging plants.
- Greater focus on sustainability and recyclability of forged steel.
Conclusion
Forged fittings are the backbone of any high-pressure piping system. Their structural integrity, long life, and resistance to extreme conditions make them an indispensable part of industries that cannot afford failure. At Fortis Forge, we manufacture forged fittings to the highest standards—ensuring your operations run safely, efficiently, and without interruption.
