Introduction
In modern industries, socket fittings must withstand high pressure, stress, and corrosion. An MS (mild steel) forged socket offers mechanical strength, structural consistency, and long service life. At Fortis Forge, we combine tradition with data‑driven optimisation to deliver sockets that perform reliably in critical systems.
In this post, I explain what an MS forged socket is, why forging matters, how we manufacture it, what tests we do, and where these sockets find use.
What Is an MS Forged Socket?
An MS forged socket is a connector piece made of mild steel. It is shaped under high pressure forging rather than cast or welded. The forging process aligns internal grain, giving the socket stronger mechanical properties and better fatigue resistance.
The “socket” typically means one end is recessed to accept another pipe or fitting. It acts as a union, coupling, or joining element in pipelines, instrumentation systems, or fluid control systems.
Why Forged Over Cast or Welded?
Using forging instead of casting or welding gives multiple advantages:
Grain continuity: forging aligns metal grains along the load paths, increasing tensile strength and fatigue resistance.
Lower porosity: forging reduces internal voids vs cast parts.
Better mechanical integrity: forged parts resist cracks or weak zones.
Consistent dimensions: modern forging plus finishing yields tight tolerances.
Reduced welding weaknesses: You avoid welded joints that might be failure points under stress or vibration.
These traits make a forged socket ideal for demanding applications like oil & gas, power, or chemical plants.
Manufacturing Process (Step‑by‑Step)
Here’s a breakdown of the typical forging process for MS sockets at Fortis Forge:
| Step | Description |
|---|---|
| 1. Raw material receipt & inspection | We source certified mild steel bars or billets. Chemical and mechanical tests verify specifications. |
| 2. Cutting / preforming | The bars are cut to approximate length for forging. Preform shapes reduce extra work. |
| 3. Heating | Use induction or gas-fired furnaces to raise temperature uniformly (e.g. ~1100–1250 °C) |

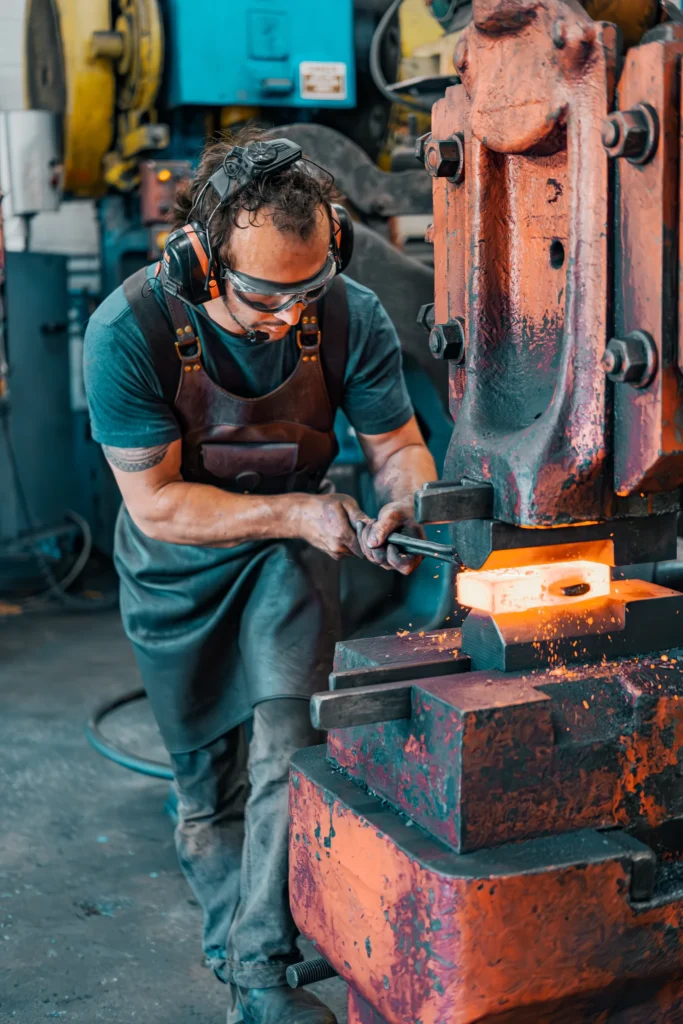

| 4. Forging / forming | Using a hydraulic or mechanical press, the preheated blank is pressed into dies to get socket shape. |
| 5. Piercing / punching | Create internal cavities or recesses in the socket core, if needed. |
| 6. Trimming / flash removal | Excess metal (flash) is trimmed, surfaces smoothed. |
| 7. Normalizing / annealing | Heat treatment to relieve stresses, refine grain structure. |
| 8. Machining / finishing | Final drilling, threading, surface finish, cleaning, deburring. |
| 9. Inspection & testing | Dimensional checks, nondestructive tests, pressure tests, hardness checks. |
| 10. Surface treatment & packing | Anti‑rust coating, marking, packaging, dispatch. |
Quality Control & Testing
Quality is critical for socket fittings. At Fortis Forge, we perform:
Dimensional inspection (CMM, calipers)
Hardness & microhardness tests
Non‑destructive testing (NDT): magnetic particle, ultrasonic, dye penetrant
Hydrostatic / pressure testing
Metallurgical analysis: microstructure evaluation under microscope
Traceability audit: cross‑checking digital twin vs physical socket
Applications & Benefits
Applications
Oil & gas pipelines and instrumentation
Power plants (steam, water feed lines)
Chemical & petrochemical plants
HVAC / plumbing systems
Hydraulic systems
Benefits
High mechanical strength and fatigue life
Resistance to pressure and shock
Greater consistency & reliability
Lower maintenance & replacement cost
Challenges & Mitigations
Forging MS sockets is not without challenges:
Die wear & maintenance: high pressures and temperatures wear dies. (Mitigation: use tool steels, periodic rework, AI for wear prediction)
Temperature uniformity: uneven heating may cause defects. (Mitigation: advanced furnace control, thermocouples, simulation)
Flash control: excess flash leads to waste or defects. (Mitigation: optimized die design, trimming stations)
Residual stress & distortion: cooling can warp parts. (Mitigation: controlled cooling, finishing straightening)
Detecting internal flaws: hidden cracks or inclusions may affect performance. (Mitigation: robust NDT, real‑time sensor monitoring, AI anomaly detection)
Future Trends & Innovations
Additive + Forging hybrid: using 3D printed preforms, then forging for critical sections.
Smart sockets: embedding RFID or sensors to monitor pressure or health in real time.
Advanced alloying / composite inserts: improving corrosion resistance or weight.
Energy efficient forging: recovering furnace waste heat, optimizing cycles, sensor feedback loops.
More AI in metallurgy: using generative design tools to further cut weight, reduce defects, and improve throughput.
Fortis Forge aims to stay ahead by pilot testing smart socket integration and generative forging designs.
Conclusion & Call to Action
An MS forged socket offers unmatched strength, reliability, and longevity for demanding industrial systems. With Fortis Forge’s integration of Napkin AI tools, we raise quality, reduce defects, and maintain full traceability.
If you are planning a pipeline, instrumentation, or fluid control project, contact Fortis Forge. We deliver customized MS forged sockets, backed by data, design, and quality assurance.
Call to Action: Request a quote, review our product catalog, or schedule a technical consultation today.
