Introduction
Piping systems are vital to industries across the globe. Strong, leak-proof joints ensure safety, performance, and reliability. One of the most common flange types is the CS Slip-On Flange.
At Fortis Forge, we manufacture CS Slip-On Flanges with precision and strict quality control. This blog explains everything you need to know about slip-on flanges, including their design, benefits, and applications.

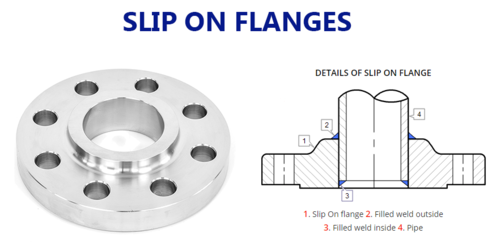

What is a CS Slip-On Flange?
A CS Slip-On Flange is made from carbon steel. As the name suggests, the pipe slips into the bore of the flange. It is then welded inside and outside for strength.
This design makes it easy to install and align compared to other flange types. Slip-on flanges are cost-effective and widely used in industries with low to moderate pressure systems.
Importance of Slip-On Flanges
Slip-on flanges are highly popular because they combine affordability and reliability.
Key functions include:
Connecting pipes securely
Allowing easy alignment during installation
Providing leak-proof sealing with gaskets
Withstanding low and medium pressure applications
Advantages of CS Slip-On Flanges
At Fortis Forge, our CS Slip-On Flanges provide unmatched performance.
Advantages include:
Cost-effective compared to weld neck flanges
Easy to install and replace
Require less accuracy in pipe cutting
Durable carbon steel construction
Suitable for low and moderate pressure pipelines
Types of CS Slip-On Flanges
CS Slip-On Flanges come in different designs for varied applications.
1. Raised Face Slip-On Flange
Most common design
Provides better sealing with gaskets
2. Flat Face Slip-On Flange
Designed for low-pressure systems
Used with flat face equipment
3. Ring-Type Joint Slip-On Flange
Used in high-pressure systems
Ensures metal-to-metal sealing
Applications of CS Slip-On Flanges
Slip-on flanges are versatile and used in multiple industries.
Oil and Gas – Pipelines and refineries
Chemical Plants – Corrosive and non-corrosive systems
Power Plants – Low and medium pressure pipelines
Shipbuilding – Marine pipelines
Water Supply Systems – Pumping and distribution
Fortis Forge CS Slip-On Flange Features
At Fortis Forge, we prioritize quality and safety.
Features include:
Made from high-quality carbon steel
Pressure ratings from Class 150 to 2500
Rust-resistant coatings
International standard compliance (ASME, ANSI, DIN, EN, BS)
Precision finishing for leak-free performance
Technical Specifications
Material: Carbon Steel
Size Range: ½” to 48”
Pressure Ratings: Class 150, 300, 600, 900, 1500, 2500
Surface Coating: Epoxy or galvanized finish
Certifications: ISO, API, ASTM
Installation Process
Slip-on flanges are easy to install compared to weld neck flanges.
Steps include:
Slip the flange over the pipe end
Align it with the pipe bore
Weld the flange inside and outside
Place gasket between flanges
Tighten bolts evenly to ensure sealing
Maintenance Guidelines
To increase the lifespan of CS Slip-On Flanges, regular checks are essential.
Inspect welds for cracks
Check gaskets for wear and tear
Tighten bolts evenly during maintenance
Apply anti-corrosion coating when needed
types of slip on flanges
demo paragraph
Conclusion
A CS Slip-On Flange is one of the most widely used piping components. It offers easy installation, cost-effectiveness, and reliable performance.
At Fortis Forge, we provide premium-quality CS Slip-On Flanges. Our products are tested under strict conditions to guarantee durability and global compliance.
For safe and reliable piping systems, trust Fortis Forge.
