Introduction
Carbon steel is a widely used material in piping and industrial systems. Among its components, carbon flanges hold a vital role. They connect pipes, valves, and equipment to form a strong and leak-proof system.
Flanges also allow easy cleaning, inspection, or replacement of parts. Carbon steel flanges are known for durability, affordability, and high-pressure resistance. Companies like Fortis Forge manufacture these flanges under strict international standards.
This blog explores the types, uses, standards, and installation practices of carbon flanges. It also highlights their advantages in different industries.
What Are Carbon Flanges?
Carbon flanges are pipe connectors made from carbon steel. They join pipes and equipment together using bolts, nuts, and gaskets.
Carbon steel provides strength and durability while remaining cost-effective. Flanges are available in different pressure ratings and face types.
Benefits of carbon flanges include:
High pressure resistance
Cost-effectiveness
Easy installation
Versatility in industries
Types of Carbon Flanges
1. Weld Neck Flange
A long tapered hub provides smooth stress distribution.
Used in high-pressure and high-temperature applications.
2. Slip-On Flange
Easy to install and align.
Best for low-pressure piping systems.
3. Blind Flange
Seals pipe ends or valves.
Used for maintenance and pressure testing.
4. Socket Weld Flange
The pipe fits into a socket for welding.
Suitable for small-bore high-pressure pipes.
5. Lap Joint Flange
Works with a stub end fitting.
Allows easy dismantling in piping systems.
6. Threaded Flange
Connected without welding.
Ideal for explosive or flammable environments.
7. Orifice Flange
Contains holes for flow measurement instruments.
Used in industries requiring accurate flow monitoring.
Applications of Carbon Flanges
Oil and Gas Industry
Used in pipelines carrying crude oil and natural gas.
Withstand extreme pressure and temperature.
Power Generation
Connect boilers, turbines, and heat exchangers.
Ensure safe operations under heavy loads.
Chemical Processing
Used in corrosive environments with protective linings.
Offer strength and chemical resistance
Water Treatment Plants
Join pipes carrying treated and raw water.
Prevent leakage in large pipelines.
Fire Safety Networks
Essential in hydrant and sprinkler systems.
Provide quick maintenance and safety compliance.

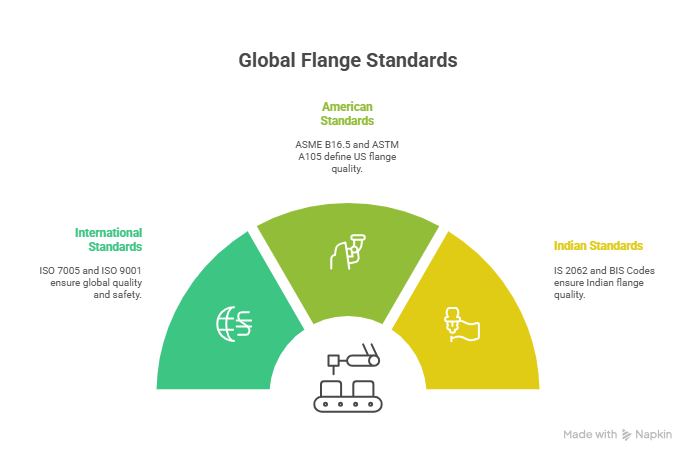

Standards for Carbon Flanges
International Standards
ISO 7005 – General flange dimensions and pressure classes.
ISO 9001 – Ensures quality management in manufacturing.
American Standards
ASME B16.5 – Pipe flange and flange fittings.
ASTM A105 – Carbon steel forgings for piping.
Indian Standards
IS 2062 – Carbon steel specifications.
BIS Codes – Cover testing and performance guidelines.
Adhering to standards ensures quality, safety, and compatibility. Fortis Forge produces flanges that meet all major international codes.
Installation Best Practices
Check Surfaces—Clean flange faces before assembly.
Use Correct Gaskets – Match gasket material to operating conditions.
Tighten Bolts Evenly—Apply torque in a star pattern for uniform sealing.
Inspect Regularly—Check for corrosion, cracks, or gasket wear.
Pressure Test—Always test the system before full operation.

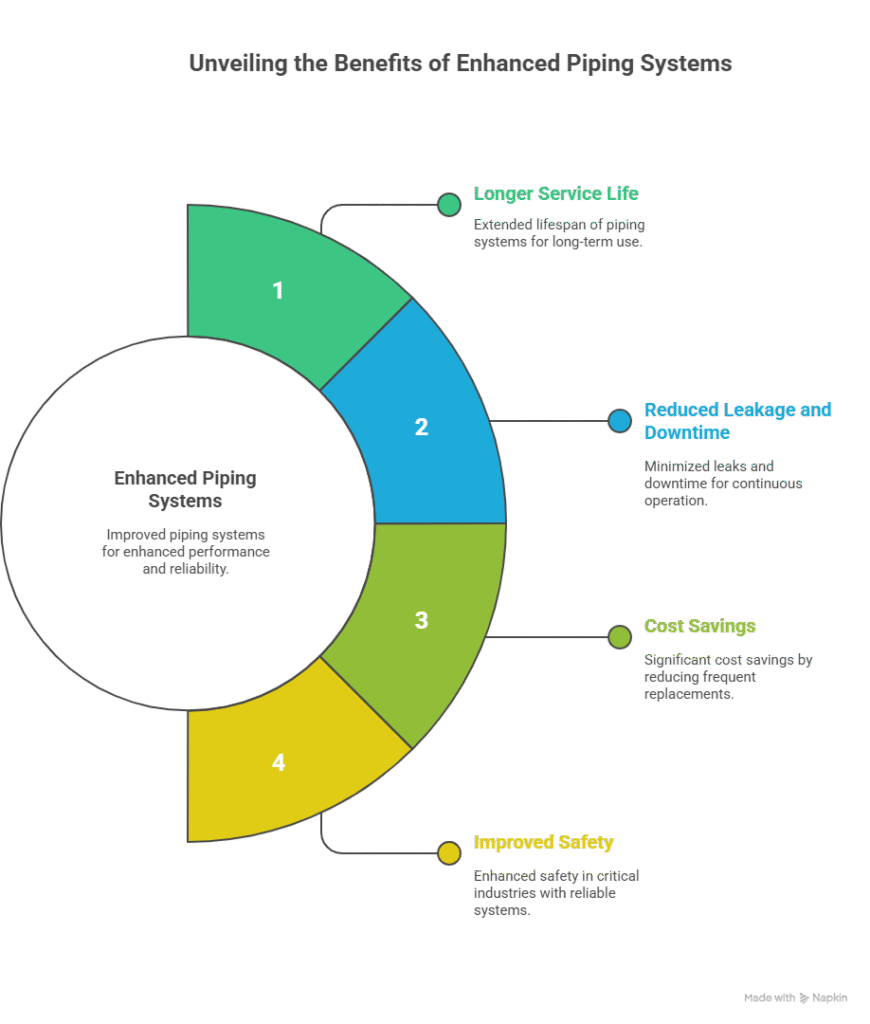

Maintenance Advantages
Longer service life of piping systems.
Reduced chances of leakage and downtime.
Cost savings on frequent replacements.
Improved safety in critical industries.
Advantages of Choosing Fortis Forge
Wide range of flange types
International certifications (ISO, ASME, ASTM)
Strong quality testing for durability
Trusted supplier in oil, gas, and power industries
Fortis Forge continues to deliver reliable flanges that meet industry demands worldwide.
Conclusion
Carbon flanges are vital components in piping systems across industries. They provide durability, flexibility, and easy maintenance. Their ability to handle pressure makes them a preferred choice worldwide.
By following proper standards and installation practices, users ensure safety and efficiency. With trusted manufacturers like Fortis Forge, industries gain reliable flange solutions built for long service life.
Investing in the right carbon flange today ensures better performance and cost savings tomorrow.
